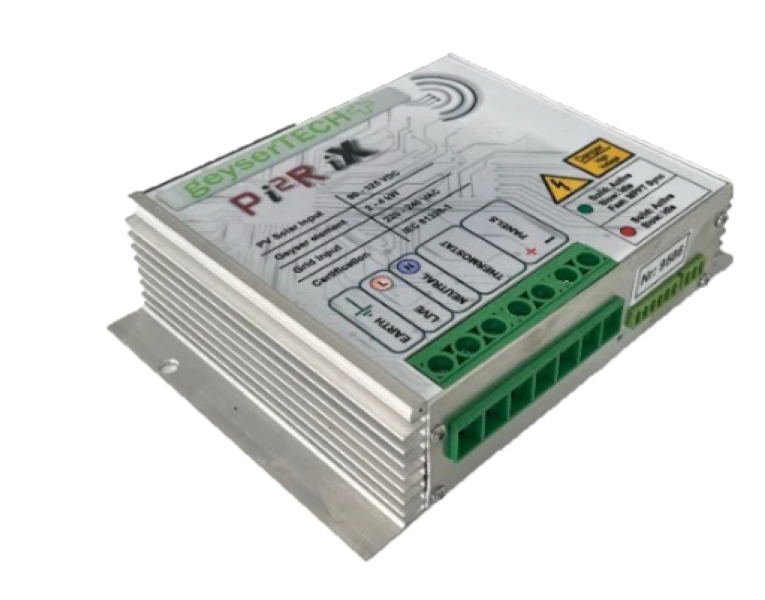

GeyserTECH+ Pi²R iX Solar Geyser Controller

GeyserTECH+ Pi²R iX Solar Geyser Controller

Overview:

Maximize energy efficiency in your home with the GeyserTECH+ Pi²R iX controller. This sophisticated device integrates seamlessly with your existing electric geyser, prioritizing solar PV input to minimize grid dependency and reduce electricity costs. It’s designed to work with geysers equipped with 2-4KW elements, ensuring high energy conversion and system efficiency.

Key Features:

• Dual Power Connectivity: Supports both AC and DC power inputs, efficiently managing energy use by utilizing solar power first and switching to grid power only as needed.
• Advanced MPPT Technology: The built-in Maximum Power Point Tracking (MPPT) optimizes the conversion of solar energy, adjusting to solar intensity fluctuations to maximize energy extraction throughout the day.
• High Power Compatibility: Suitable for high-demand systems, the Pi²R iX can manage significant power loads, supporting heating elements between 2-4KW.

Optional Digital Touchscreen Displays:

• Standard Display: Equipped with a 3.5″ color touch LCD, this display enhances user interaction, allowing for precise control over temperature and operation schedules.
• WiFi-Enabled Display: Adds WiFi connectivity for remote monitoring and adjustments through the internet or mobile devices, ideal for advanced home energy management.

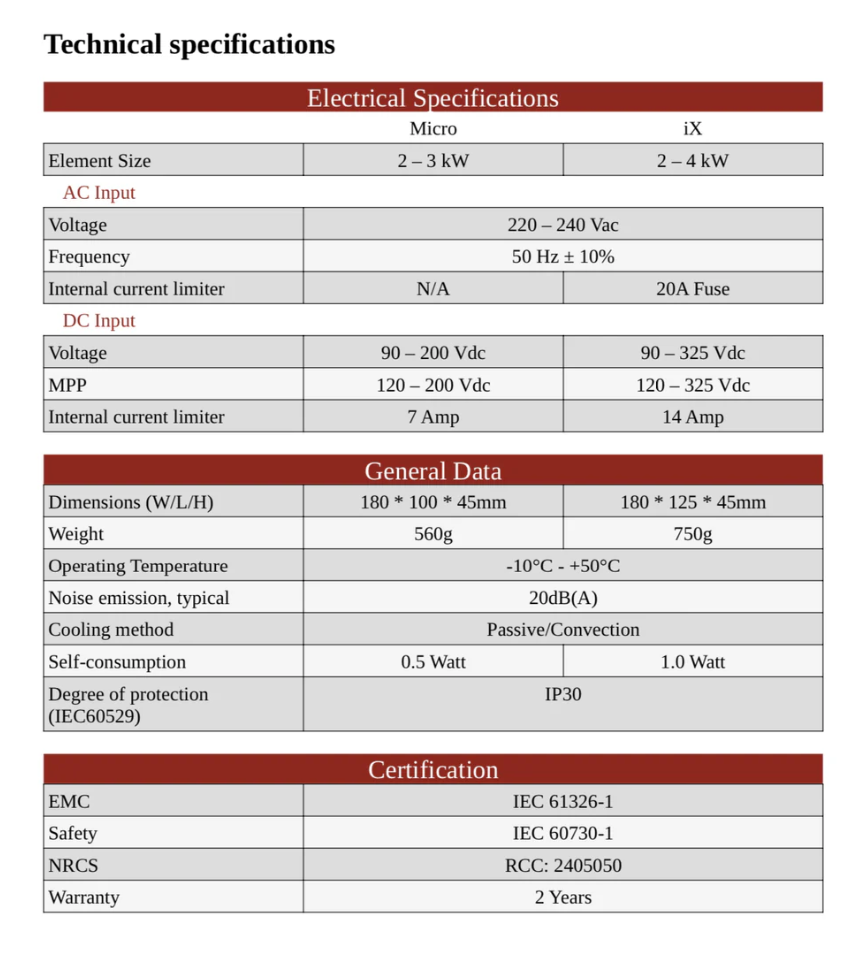

Specifications:

• Minimum Solar Panel Requirement: At least 3 panels, 550W each, in series
• PV Input Voltage: 90-350 VDC
• AC Input Voltage: 220-240 VAC, 50Hz
• Internal Fuse: 20A
• Protection Class: IP30
• Certifications:
  • EMC: IEC 61326-1
  • Safety: IEC 60730-1
  • NRCS: RCC: 2405050

Installation and Compliance: The controller’s installation is straightforward, compliant with SANS 10400 standards and NRCS registered, ensuring it adheres to local regulatory requirements.

Environmental Impact and Sustainability: By leveraging solar power, the Pi²R iX significantly reduces environmental impact and offers a sustainable alternative to traditional geyser heating methods. Its design minimizes maintenance and extends the lifespan compared to systems with circulating water.

Warranty and Support: The GeyserTECH+ Pi²R iX is backed by a 2-year manufacturer’s warranty and supported by an extensive service network, providing reliable operation and customer satisfaction.

Installation Note: Installation must be performed by a qualified electrician to ensure safety and compliance with local electrical standards.

follow this link for the display “CLICK HERE”
