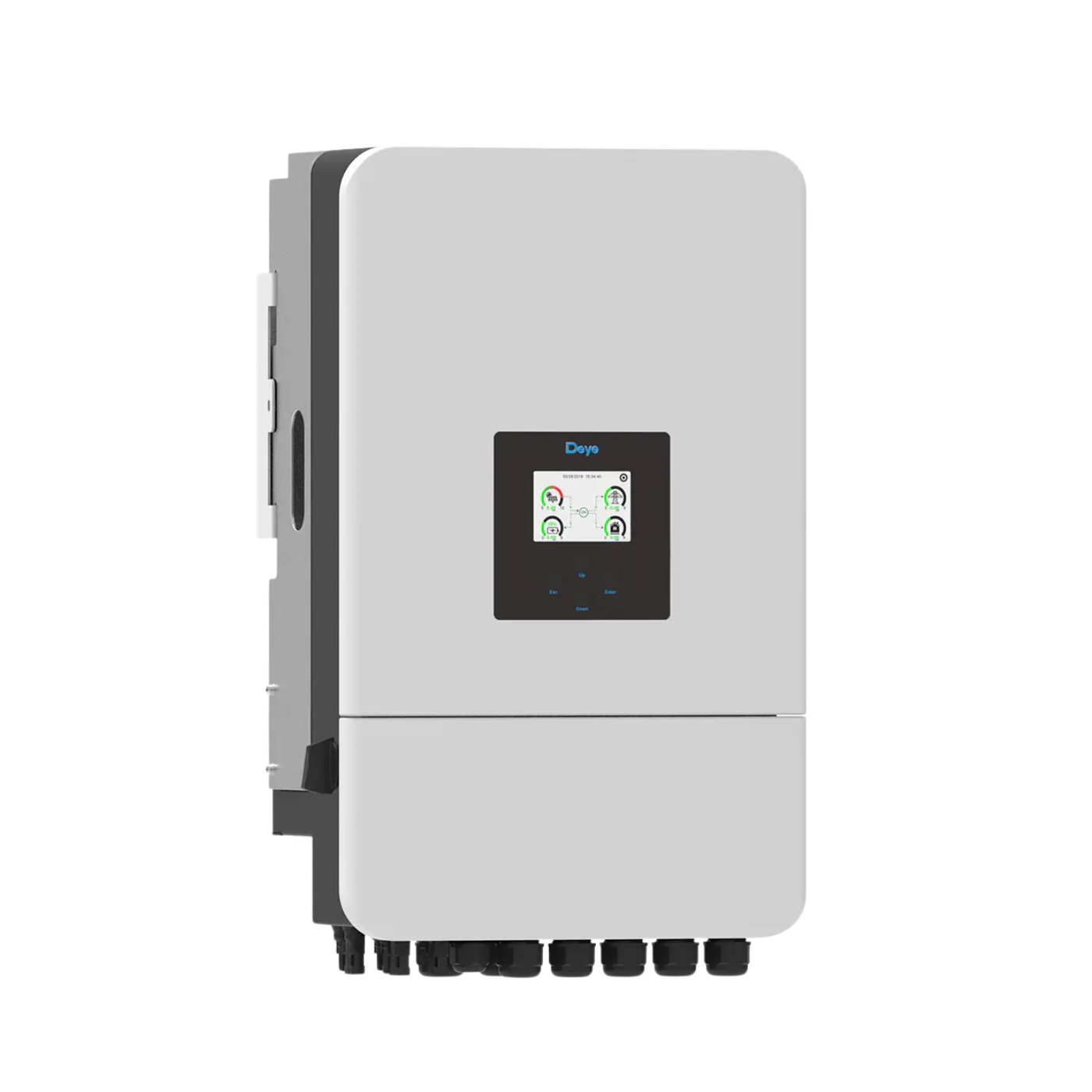

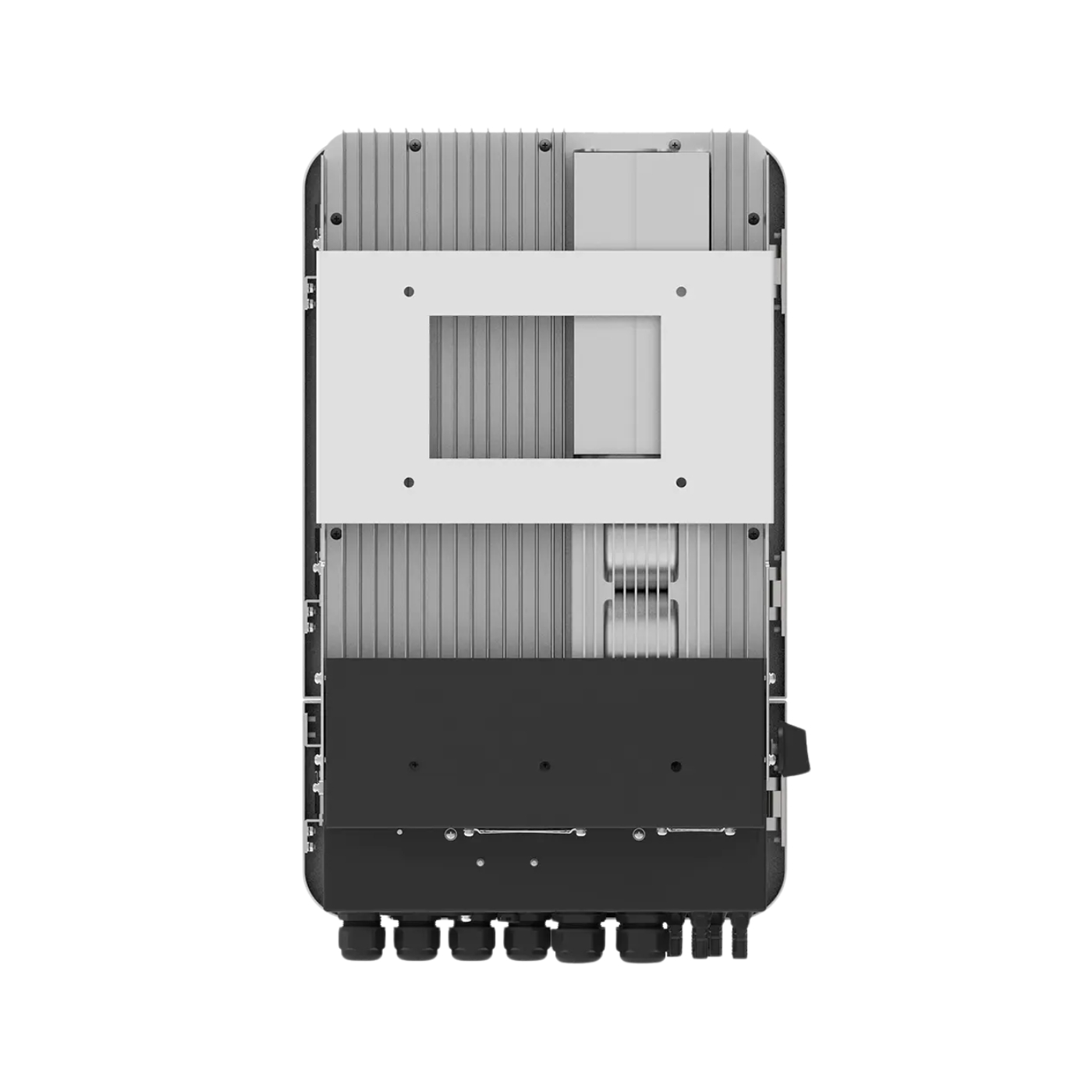

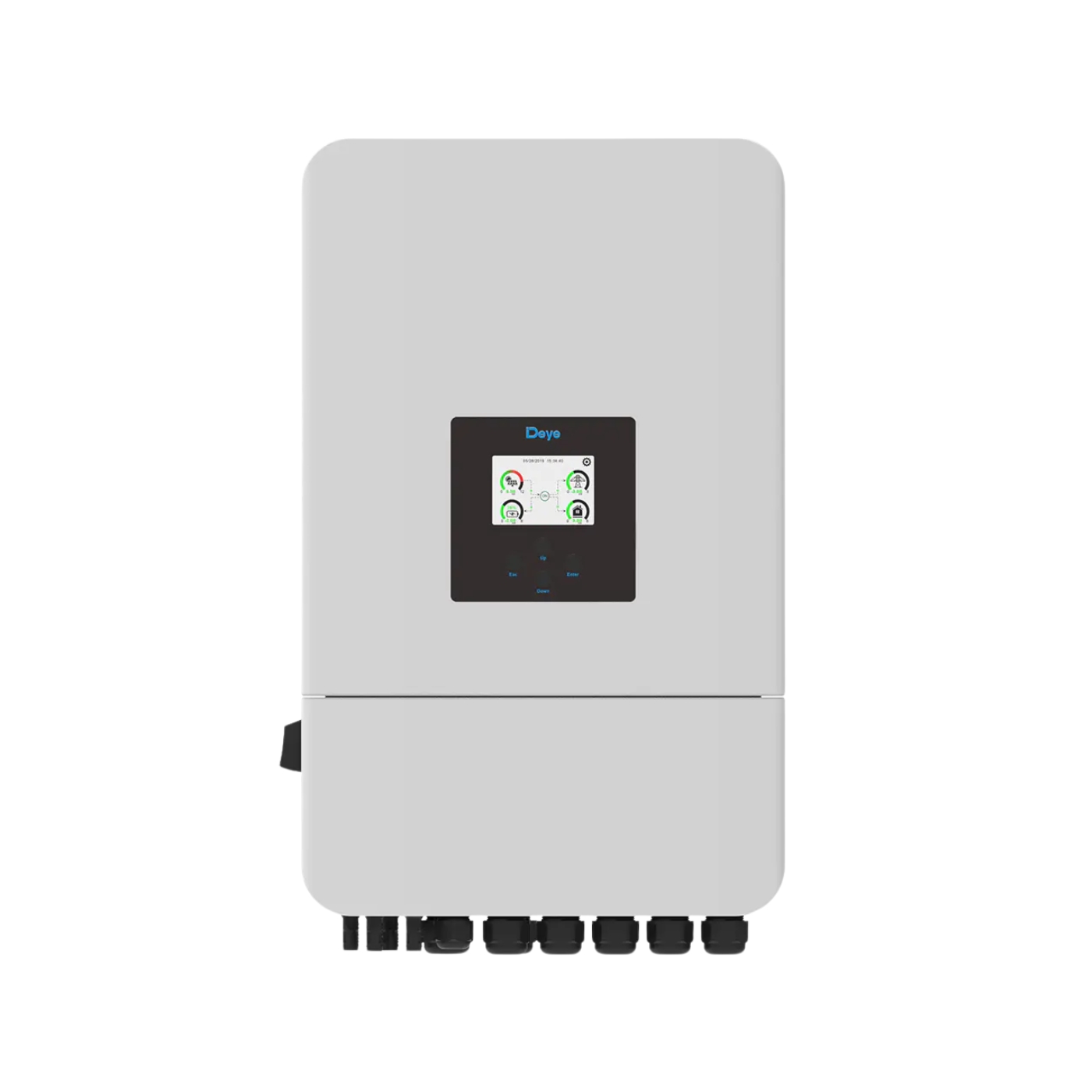

DEYE 6KW HYBRID INVERTER P1 (SUN-6K-SG04LP1-EU-SM2)

The Deye SUN-6K-SG04LP1-EU-SM2 is a high-performance single-phase hybrid inverter ideal for residential solar installations. With support for lithium and lead-acid batteries, generator input, and AC coupling, it’s designed for versatile and future-proof energy systems.

Technical Highlights:

Rated Output Power: 6,000W

Max. PV Input Power: 12,000W

MPPT Trackers: 2 MPPTs with dual string inputs (2/1+1)

Max. PV Input Voltage: 500V

MPPT Operating Range: 150–425V

Start-Up Voltage: 125V

Max. Operating PV Current: 27A + 27A

Battery Compatibility: Lithium-ion and lead-acid

Battery Voltage Range: 40–60V

Max. Charging / Discharging Current: 135A

AC Passthrough (Grid to Load): 40A

Peak Power (Off-Grid): 2× rated power for 10 seconds

Efficiency: Max 97.6% | Euro Efficiency: 96.5% | MPPT >99%

Power Factor Adjustment: 0.8 leading to 0.8 lagging

Display & Interface: Touch LCD, RS485, RS232, CAN

Monitoring Options: GPRS / Wi-Fi / Bluetooth / 4G / LAN (optional)

Protection Features:

Type II AC & DC surge protection

RCD monitoring

DC reverse polarity protection

AC overcurrent, short circuit, and overvoltage protection

Ground fault and insulation monitoring

Arc fault detection (optional)

Parallel Operation: Up to 16 units (on-grid and off-grid)

Charging Schedule: 6 configurable time periods for charge/discharge

AC Coupling Support: Yes – allows retrofitting to existing solar systems

Physical Specs:

Dimensions: 376 × 470 × 241.5 mm

Weight: 19 kg

Cooling: Natural convection (fanless)

Noise Level: <30 dB

IP Rating: IP65 (indoor/outdoor rated)

Operating Temperature Range: -40°C to +60°C (derates above 45°C)

Altitude Limit: 2000 m

Warranty: 5 or 10 years (based on installation location and policy)

The SUN-6K-SG04LP1-EU-SM2 is a future-ready hybrid inverter, combining powerful features and energy flexibility to support homes seeking energy independence and resilience.
